Das Blinken Board

News:

Der MagnetFelder Detector

DBB Programming Hexapus Cable

07.2013 - The Das Blinken Board Mini a trimmed down version of the DasBB for the modern age.
2010 - A person named Dave did a fantastic code clean up for the Das Blinken Board.
10.2009 DerMagnetFeldern Detector.
09.2009 DasBlinkenBoardProgrammingHexapusCable - You will need one of these if you would like to re-program your DasBB using an AVRISP-MKII.

Description:

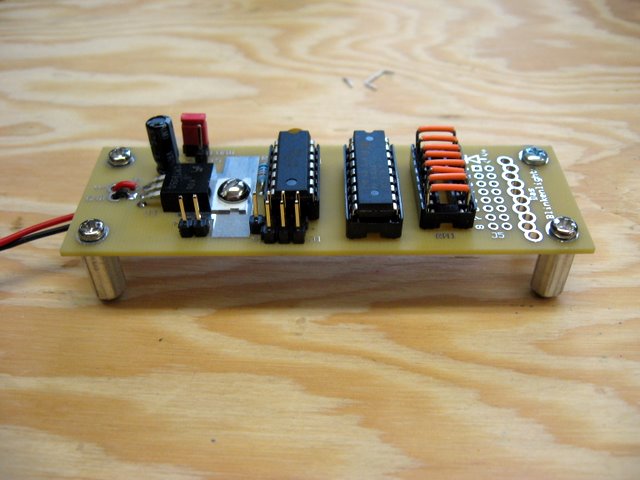

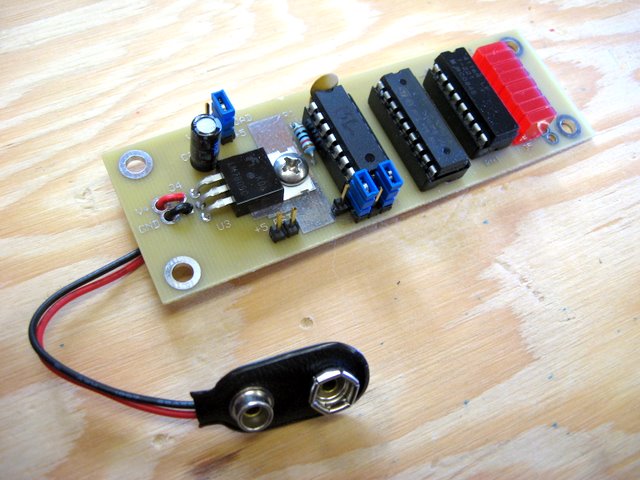

The eight channel "Das BlinkenBoard" kit can be used to blink LEDs (of course) but also be adapted to drive *strings* of LEDs, operate solenoid vales, turn DC motors on and off, control DC motor speed via PWM, control incandescent lights (on/off/dim) as well as brushless DC motors and other DC loads at multiple voltages.

Details about this board can be found in the June 2009 issue of Nuts and Volts Magazine and the kit may be ordered from the Nuts and Volts Store. Direct Link

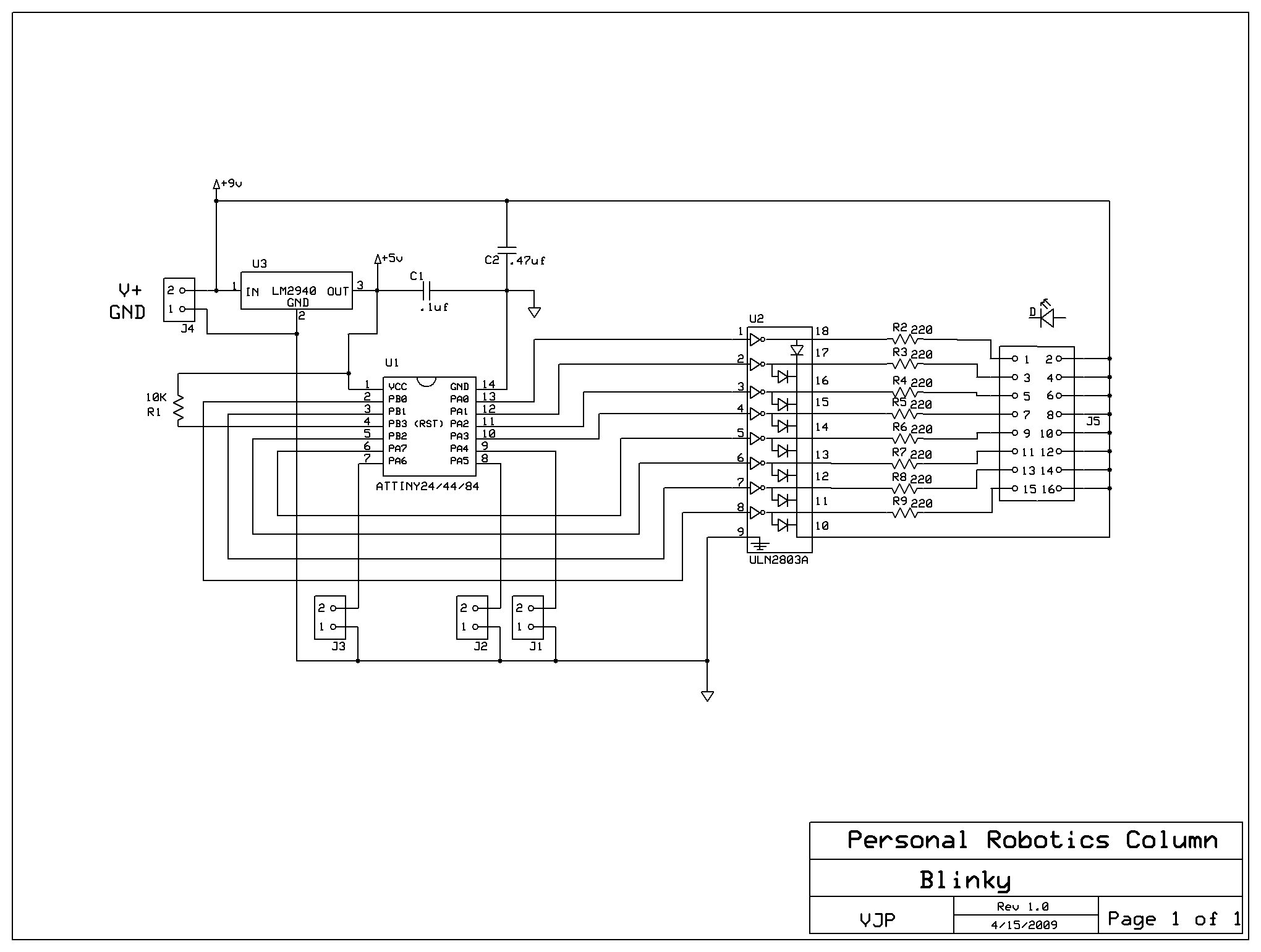

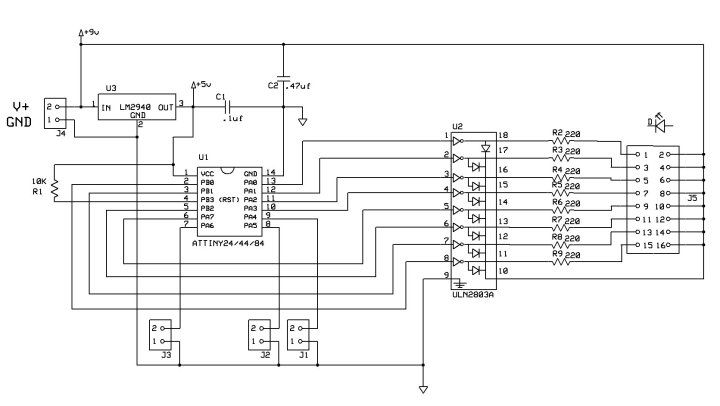

Schematic:

Schematic in ExpressSCH format

Source:

Source for Atinty24/44/84 running w/ internal oscillator.

dasblinkenboard_v01.zip - 05-01-09

Notes:

Software License:

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.
