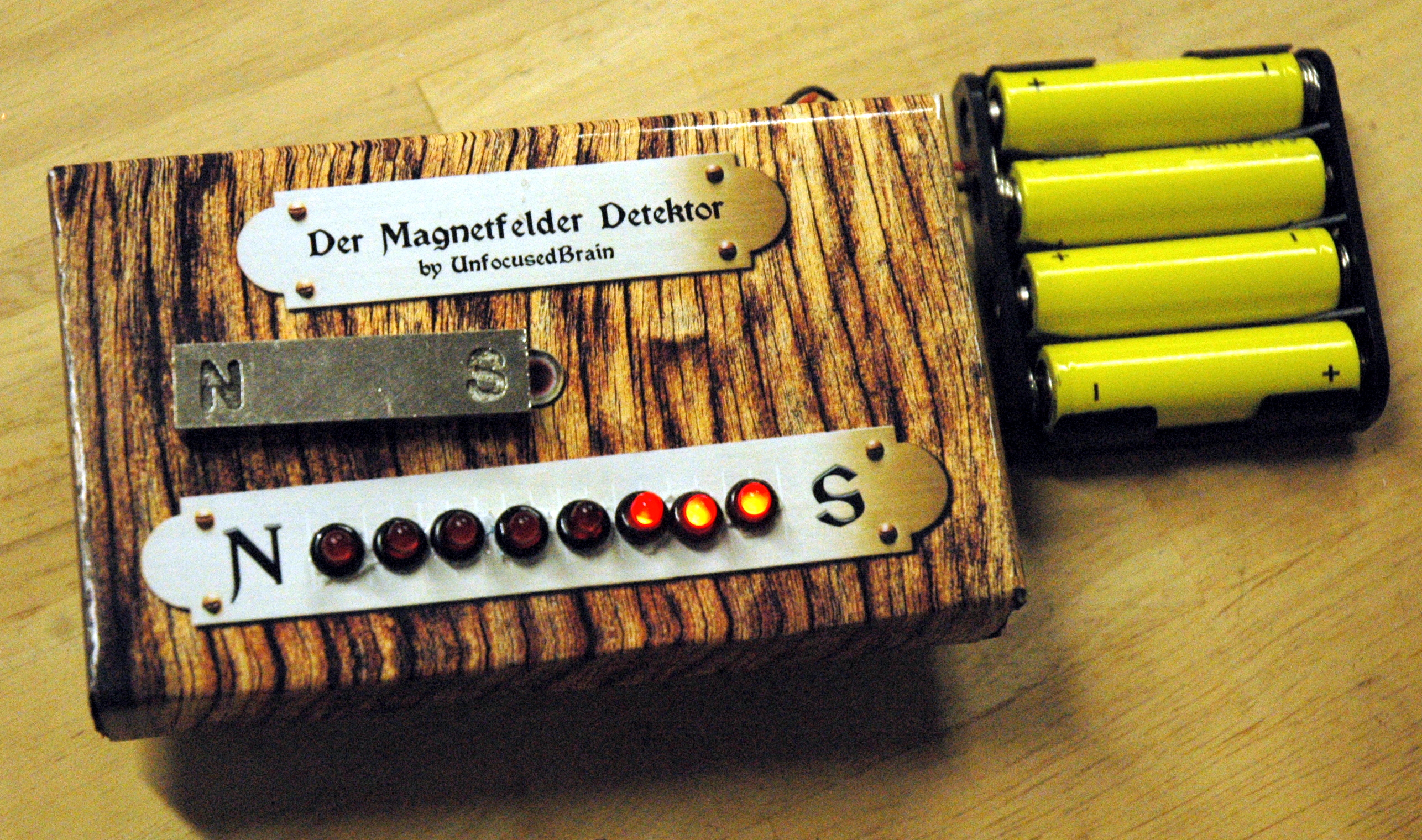

Das Blinken Board - Der MagnetFelder Detector

Description:

Using the DasBB (Das BlinkenBoard) kit from Nuts & Volts you can detect magnetic fields by the addition of one simple part and new firmware.

Details about the DasBB can be found in the June 2009 issue of Nuts and Volts Magazine and the kit may be ordered from the Nuts and Volts Store. Direct Link

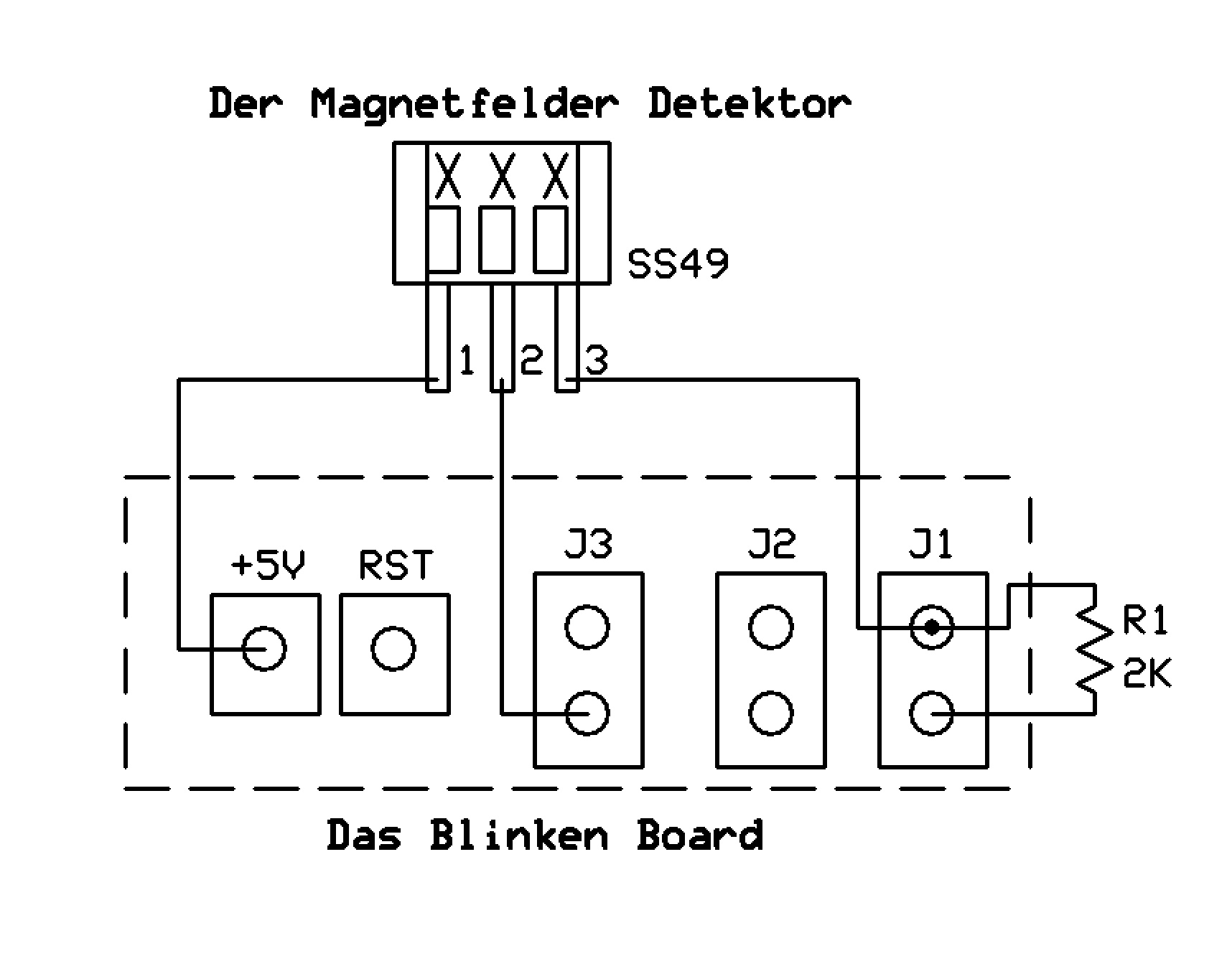

Schematic:

Schematic in ExpressSCH format

Source:

10.18.2009 - dermagnetfeldernv2.zip

Artwork:
